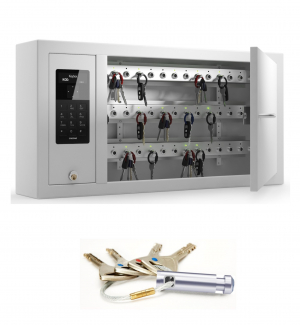

Key-Box 9400 SC Series

Model: 9400SCSERIES

Intelligent Key-Box with key identification for monitoring and controlling each and every key.


Key-Box 9400 SC Series

Intelligent Key-Box with key identification for monitoring and controlling each and every key. Space for a maximum of 42 key hooks(maximum of 3 key strips with 14 spaces on each strip) Display with simple menu navigation. Equipped with battery backup, alarm contact for door and buzzer. Administration performed using the PC program KeyWin5. Can be expanded using multiple key cabinets in the same system. Can be expanded using 9500 EC Expansion Cabinet.

Users

•Selected or random PIN code. Option to
 change code at cabinet(s).
•Inactivation of users.
•Validity period for users.
•Unlimited number of users.

Groups

•Groups for users and keys.
•Time channels.
•Simple administration via groups

Keys

•Time restriction.
•Searchable hidden key ID.
•Graphical key overview.
•One key in one or more cabinets.
•Free or fixed key position

Administrators

•Unlimited number of administrators.
•Adjust administrator rights.
•Selection of cabinet(s) for administration.
•Only information about own cabinet(s).
•Activities registered in log



Key Cabinet

•Search function in display.
•Information about who has key.
•Service menu for configuration.
•Administration code with full authorization.
•Stand-alone or network.
•Automatic or fixed IP address.
•Door alarm.
•Key alarm.
•Burglar alarm.
•Choice of language.
•Connection for external reader.
•Connection for external alarm

Event Log

•Log from PC and cabinet(s).
•Selection of what will be shown in log.
•Intelligent search function.
•Sort by date or events.
•Clear alarm indications.
•Reports via CSV file and PDF.









Modular Design Features

Designed to accommodate between 14 and 42 keys (or key sets), the innovative 9400 SC Series design allows for starting small and later expanding by adding multiples of 14 key positions (called expansion key strips) as required.
Expansion Key Strips are defined as locking or non-locking. Locking receptor strips lock the key fobs in place restricting access to authorized personnel down to the individual key. Non-locking expansion strips provide a solution for organizations requiring less security but still an audit of key usage. LED lighting indicate which keys can be taken, which keys are restricted and assist the user when returning the key to the correct location.The cabinets can be supplied with a clear polycarbonate or metal door. The control panel consists of the user interface which includes the screen, keypad and access card or biometric reader.



PC Software Administration

The 9400 SC Series is administered from the user friendly KeyWin 5 Pro software supporting a Microsoft Access or SQL database.The 9400 SC Series can communicate with the KeyWin 5-Pro software using a range of different options including Ethernet, GPRS, RS485, RS232 and modem. Multiple systems can be networked together over a local or wide area network to provide accountability for a limitless number of keys administrated from multiple PC workstations running the KeyWin 5-Pro software.



User Identification

The 9400 SC Series can support any type of access control device required to identify a user to the key system. Supported devices include RFID proximity readers from all leading access control manufacturers, magstripe, barcode and biometric
technologies such as fingerprint, etc.



Specifications

Cabinet Dimensions: 746 x 370 x 140 mm
Weight: 25 kg
Power Supply: Input: AC120-240V
Output: VDC
Battery Backup: DC12V 3.2Ah (24hours)
Power Consumption: 65W max/0.3A
Cabinet Material: Steel
Color Options: Light Grey Powder Coated
Door Material: Solid Metal or optional Clear Polycarbonate

Operating Temp: Ambient For Indoor Use Only
Mounting: Wall or Cabinet stand mounted
Key Positions: 14-42
Receptor Strip Support: Locking, Non Locking,
Users per systems: 10,000 plus
Communications: Ethernet, GPRS, RS485, RS232, Modem
Reader Interface: Wieguard
