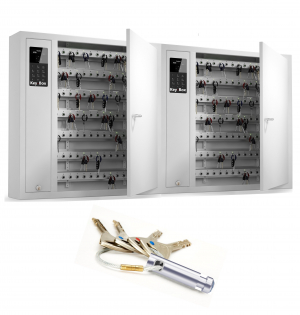

Key-Box L Series 9500 SC-EC Special Packaged 196 Key Slot Capacity Automated Key System

Model: Key-Box L Series 9500 SC-EC

Key-Box L Series 9500 SC-EC key managemnet system with key identification for monitoring and controlling each and every key. The L series system is special packaged key system available with 196 key slot capacity. The systems are available with optional high security individual intelligent locking key fobs or with lower security individual non-locking intelligent key fobs




Key-Box L Series 9500 SC-EC Info Brochure KeyWin6 Pro Standard Software Brochure KeyWin6 Pro Opt. Cloud Software Brochure
Case Study and Clients Using Key-Box Systems Purchasing Guide for Key Mgmt. System Key-Box 100% Solid Metal Smart Key Fobs

Key-Box High Quality Key Management Systems

Key-Box L Series 9500 SC-EC Secured Key System

Special Packaged Large Capacity Key Management System With 196 Key Slots

Key-Box with key identification for monitoring and controlling each and every key. Space for a maximum of 196 key slots with individual locking key fobs (The system has 14 key strips with 14 spaces on each strip) Full Display with simple to use menu navigation. Equipped with battery power backup in case of power outages. All administration is performed using the powerful KeyWin 6 Pro software.

What's Included In Each Key-Box Key Management System Each L Series 9500 SC-EC key system includes *Key cabinet system with digital display and PIN entry keypad, *Standard high impact clear polycarbonate and metal frame door, *100% solid metal intelligent key fobs, *Stainless steel tamper proof key rings, *KeyWin Pro network software license with no annaul fees, *Unlimited professional remote tech support for setting up your new Key-Box key management system. Key-Box is your best value as it includes everything required without added extra costs!

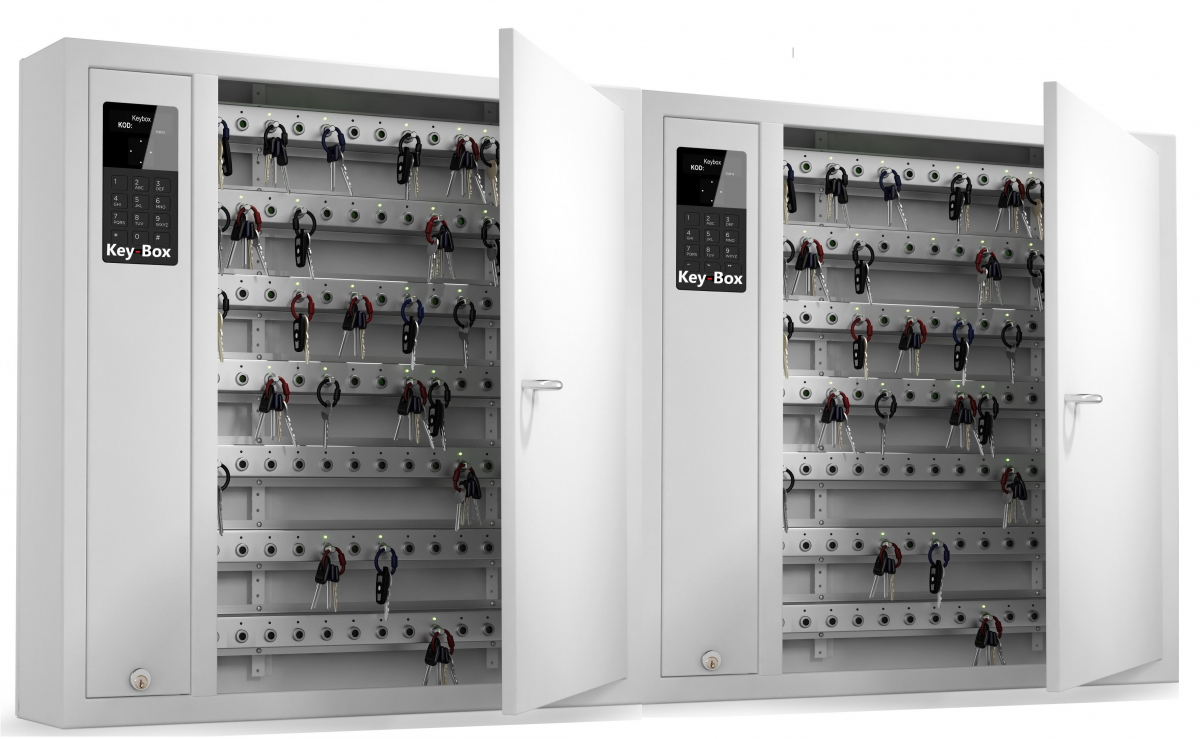

Key-Box L Series Key System Wall Mounting Configurations

Key-Box L Series 9500 SC-EC

The Key-Box 196 key slot capacity key  management system can be easily wall mounted horizntally on any wall and also it can be mounted vertically Key-Box key systems all come standard with our most popular standard no extra charge clear high impact secure polycarbonate with metal frame door, Key Box also offers an available optional solid all metal door at extra charge.





No Hidden Monthly or Yearly Fees!

All Key-Box automotive key systems includes KeyWin Pro software Plus remote support for setting up the system if required by the client at no extra cost!...Learn More



How Does Key-Box Key Systems Work?

The way the key system with intelligent locking key fobs works is each user would be issued a preselected personal PIN number the user will then enter his/her PIN on the keypad located on the cabinet. The cabinet door will automatically open and will only release the keys they are authorized to have. The rest of the keys in the cabinet will stay locked in place. The system will record when the keys were taken and when they were returned and by whom! If the keys are not returned within the curfew the system will automatically generate an email and send it to management or security.



All Key-Box systems come with our durable stainless steel flexible tamper proof key rings

All systems come standard with our 1.5" diameter round durable flexible stainless steel key rings We also offer a wide range of available key rings ...Learn More



Key-Box Key System Are Loaded With Advanced Features

Users

•Selected or random PIN code. Option to
 change code at cabinet(s).
•Inactivation of users.
•Validity period for users.
•Unlimited number of users.

Groups

•Groups for users and keys.
•Time channels.
•Simple administration via groups

Keys

•Time restriction.
•Searchable hidden key ID.
•Graphical key overview.
•One key in one or more cabinets.
•Free or fixed key position

Administrators

•Unlimited number of administrators.
•Adjust administrator rights.
•Selection of cabinet(s) for administration.
•Only information about own cabinet(s).
•Activities registered in log

Key Cabinet

•Search function in display.
•Information about who has key.
•Service menu for configuration.
•Administration code with full authorization.
•Stand-alone or network.
•Automatic or fixed IP address.
•Door alarm.
•Key alarm.
•Burglar alarm.
•Choice of language.
•Connection for external reader.
•Connection for external alarm.

Event Log

•Log from PC and cabinet(s).
•Selection of what will be shown in log.
•Intelligent search function.
•Sort by date or events.
•Clear alarm indications.
•Reports via CSV file and PDF



Modular Design Features

Designed to accommodate between 14 and 196 keys (or key sets), the innovative 9500 SC-EC L Series design allows for starting small and later expanding by adding multiples of 14 key positions (called expansion key strips) as required. Expansion Key Strips are defined as locking or non-locking. Locking receptor strips lock the key fobs in place restricting access to authorized personnel down to the individual key. Non-locking expansion strips provide a solution for organizations requiring less security but still an audit of key usage. LED lighting indicate which keys can be taken, which keys are restricted and assist the user when returning the key to the correct location. The cabinets are supplied with a sliding drawer. The control panel consists of the user interface which includes the screen, keypad and access card or biometric reader.

PC Software Administration

The 9500 SC L Series is administered from the user friendly KeyWin 6 Pro software supporting a Microsoft Access or SQL database.The 9500 SC-EC L Series can communicate with the KeyWin 6 Pro software using a range of different options including Ethernet, GPRS, RS485, RS232 and modem. Multiple systems can be networked together over a local or wide area network to provide accountability for a limitless number of keys administrated from multiple PC workstations running the KeyWin 6 Pro software.

User Identification

The 9500 SC-EC L Series can support PIN access only to identify a user to the key system.



Specifications

Cabinet Dimensions: 1460 H x 746 MM W x 14 D mm
Weight: 70 kg
Power Supply: Input: AC120-240 VAC
                          Output: VDC
Battery Backup: DC12V 3.2Ah (24hours)
Power Consumption: 65W max/0.3A
Cabinet Material: 1.5 Galvanized Steel
Color Options: Light Grey Powder Coated



Door Material: Solid Metal
Operating Temp: Ambient For Indoor Use Only
Mounting:  Wall mounted

Key Positions: 14-210
Receptor Strip Support: Locking, Non Locking,
Users per systems: 10,000 plus
Communications: Ethernet, GPRS, RS485, RS232, Modem
Reader Interface: Wieguard





New Automated Storage Locker Systems for Storing Your Valuables!

New Automated Storage Locker Systems

Key-Box now offers a wide range of automated storage locker system for storing a wide range of assets and valuables ...Learn More



Please contact us for more info and pricing on our key management systems, solutions and products Please Click to Contact Us Now
